TCP -- The Internet Connection
Supporting all connection-oriented services over the Internet,
TCP is one of the most widely used protocols today
From its beginnings as part of the early ARPANET research efforts within the Government's Defense Advanced Research Project Agency (DARPA), TCP has become one of the most
prevalent protocols in use today. Virtually all of the Internet based connection oriented services make use of the Transmission Control Protocol, better known as TCP. In general terms,
TCP provides full-duplex, connection oriented transfer of byte streams between processes on machines interconnected over an Internet. It provides flow control services that manage
the transfer of information between machines and networks that are not able to keep up with the offered traffic load.
The protocol provides a connection oriented set of services with a corresponding state machine that describes the behavior of well-behaved TCP implementations. The general
application programming interface used for TCP communications is the Socket interface. Originally derived from the BSD Unix implementation, this interface can be found in many
real-time operating systems. In addition, extensions to the socket interface have been developed to support the peculiarities of the Windows programming environment. The Windows
interface has been come to be known as Winsock.
RFC 793 identifies TCP as addressing some of the core functional requirements of internetworked communications. These characteristics include:
- Basic Data Transfer - TCP provides stream based transfer services, guaranteeing ordering of the byte streams as presented by the calling applications
- Reliability - TCP can recover from lost or duplicated information, presenting information to the receiving application in the order it was sent by the source application
- Flow Control - The receiver can control the amount of information in the network sent at any given time by the information source. A sliding window, with size indicated by the
receiver, is used to manage information flow.
- Multiplexing - TCP supports many host processes participating in communications using a common internetworking layer.
- Connections - Processes communicating with TCP establish logical connections between one another. The process of establishing a connection serves as a logical starting
point for the sequencing of information. Two types of services are provided to users of the connection: listen, that a server uses to wait for connections over a well-known port
address, and connect, that client systems use to request a connection to the server.
- Precedence and Security - TCP includes only minimal services in this area, forwarding precedence and security information to the supporting internetworking layer.
With these general service characteristics in mind, lets take a look at the internal workings of the protocol.
The Protocol
A convenient starting point to review the TCP protocol is to first take a look at the TCP frame header. Carried by the IP header to route messages to the appropriate hosts, the TCP
header defines a format for controlling connections between client processes in peer to peer conversations. Fields are included to support application addressing, connection control,
information sequencing and the selection of value added service options.
Figure 1 - The TCP Protocol Header (From RFC793)
Each of the fields shown in Figure 1 has a role to play in controlling
information flow in TCP conversations. They are used as follows:
- Source and Destination Ports - identify the transmitting and receiving entities from and for whom the PDU is destined. The use of the port addresses facilitates the multiplexing
of multiple connections to the same system.
- Sequence Number - uniquely identifies the information being sent in information carrying frames. These sequence numbers are used to ensure the orderly delivery of the
information stream. The sequence number uniquely identifies the bytes being sent in the outgoing packet (if any).
- Acknowledgment Number - identifies the sequence number of the most recent information byte received in anticipated order.
- Data Offset - indicates the length of the TCP header in increments of 32-bit values. Used to find the beginning of the start of the packet's data field.
- Flags:
- URG - indicates that urgent, out of band information is contained in the PDU. This information is referenced by the Urgent Pointer
- ACK - indicates that the acknowledgment field of the packet is being used to acknowledge information previously sent by the destination process.
- PSH - push; instructs the receiving TCP process to immediately forward the information to the receiving process rather than buffering it while waiting for additional
information.
- RST - Reset the connection. Instructs the receiving process to revert to its previous idle state. This control bit is most often used when a TCP service detects the receipt
of information whose sequence number or other control information indicates that it was not intended for the current connection.
- SYN - Sync indicator. Used to synchronize the establishment of connections.
- FIN - Finish. Indicates that the sending party has no more information to transfer.
- Window - the number of octets (bytes) that the sender of the message is willing to handle at any point in time. This is the primary flow control mechanism.
- Checksum - 16-bit one's complement of the one's complement sum of all data in the header and data fields. While this is not a terribly robust error checking mechanism, most
TCP/IP implementations include stronger error detection mechanisms in the link layers. For example, Ethernet and FDDI employ a 32-bit CRC that is far more likely to detect
transmission errors.
- Urgent Pointer - only relevant in packets with the URG indicator set, this points to the portion of the information field containing the urgent information.
- Options - contains a list of options that pertain to the operation of the sending station. RFC 793 specifies only one functional option, the maximum segment size, that is used by
the sending station to identify the maximum number of octets that it can process in a single transmission.
- Padding - used to ensure that the header ends on a 32-bit boundary. Does not carry any information.
- Data - variable length, carries the information being sent by the source process to the receiver.
Through this information, all TCP operations, connection establishment/termination and data transfer are performed.
Connection Management
Prior to transferring information through TCP, the participating processes must first establish a logical connection. The state machine employed to describe the connection
establishment and termination process is shown in Figure 2.

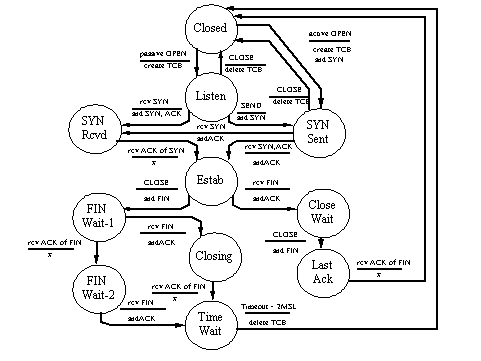

Figure 2 - TCP Connection State Machine (Also from RFC 793)
Many of the indications shown in the state transitions of the diagram directly reference to control bits (SYN, FIN...) just covered in the discussion of the TCP packet format. There are
two primary transitions that a user can make from the Closed state, either through a passive Open where the local user has requested the TCP process to wait for connections against a
specific port address. An active Open occurs when the local user explicitly requests the establishment of a connection to a process residing at a port address of a defined machine. This
will result in a packet with the SYN control bit being sent to the peer process. If you follow through this state machine, you can see that the typical PDU exchange in connection
establishment is as follows:
Connect Request (SYN) -------------------->
<--------------------------- (SYN, ACK) Connect Acknowledgment
Acknowledgment(ACK) ------------------>
Note that to accept a connect request packet (SYN) from another station, the recipient must be in the "Listen" state, that is entered through a passive open command received from the
calling application. Once both participants in the TCP connection have received acknowledgments to the SYN packet, they enter into the "Estab" state, in which information transfer
can occur.
Once in the established state, either station can send information. As information is sent by each station, the amount of unacknowledged traffic is tracked. Once the amount of
unacknowledged information reaches the window size indicated by the peer, no more information is sent until the pending traffic is acknowledged. As the information is transmitted, a
retransmission timer is set. The value of the timer begins with a value that should be calculated based on round-trip time measurements. As retransmissions are sent, this retry timer is
typically increased exponentially to avoid piling traffic on a system that may not be responding due to congestion conditions. Retransmission timing on TCP is particularly challenging,
given that TCP connections can range from logical connections between two processes on the same computer to connections between machines literally halfway around the world,
spanning several subnets.
The selection and management of window sizes presents an important engineering challenge. Receivers selecting a particularly small receive window will result in the peer sending many
more packets than would be necessary if the window size had been larger. Also, buffering algorithms that allow information to accumulate for a brief period of time prior to transmissions
can result in the transmission of larger packets that place a much smaller load on the network. The choice of mechanisms within each end system is up to the designers of the TCP
software; the
RFCs
merely provide guidance in these areas.
No special processing is provided to quickly determine that a peer TCP service has become unreachable. If an application is not attempting to transmit information over the connection,
no keep alive mechanisms are supported by the base protocol. Therefore, it can take a long time to determine that a connection is no longer operating. While this can be a challenge in
developing applications, it has the important advantage in that it limits the amount of extraneous traffic sent on a network. Applications requiring fast detection of a peer becoming
unavailable will typically incorporate some form of periodic keep-alive message. In these applications, a failure to receive the keep-alive from the peer will indicate that it is no longer
reachable.
Unlike the unbalanced connection establishment phase (where one station must be passively listening), termination of the connection can occur through an asynchronous transmission
by either station. In this case, either station can request that the connection be ended through transmitting a packet with the FIN option set. When both stations are operating correctly,
the exchange of traffic in closing a TCP connection is as follows:
(FIN) ---------------------------------->
<------------------------------ (ACK)
(Notify User)
<-------------------------------(FIN)
(ACK) --------------------------------->
Note that this procedure assumes that both applications are participating in the connection closure process. Situations in which communications between the stations have been
discontinued require intervention of upper layer services. In these cases, application programs time-out the connection termination process to prevent control blocks (and the
connections) from being orphaned and consuming system resources.
The uses for TCP are numerous. World Wide Web information transfers, File Transfers (FTP), remote terminal sessions and E-Mail (through
SMTP) are some of the more widely used applications that make use of TCP connections. Through the services provided by TCP, the Internet application layer services can focus on
the burden of sequencing and managing application services. TCP controls the establishment of connections, sequencing of information and retransmission of information as
appropriate.
